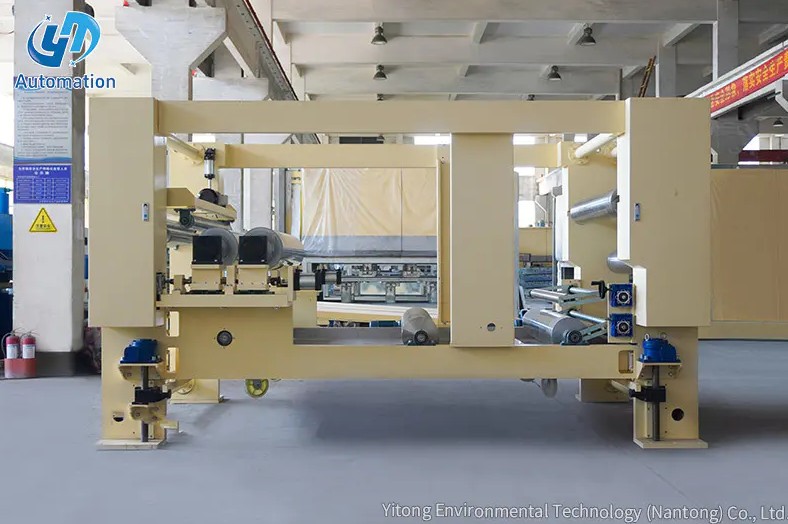

What Is a One-Step Impregnation Station?

A one-step impregnation station is a specialized piece of equipment used in manufacturing processes, specifically for the impregnation and coating of materials. It allows for the uniform application of a liquid, such as glue or resin, onto surfaces or substrates. This process is integral to industries that require precise and controlled coating, such as in the production of automotive parts, electronic components, and textiles. The main advantage of a one-step impregnation station is that it combines multiple operations—impregnation, measurement, and adjustment—into a single, efficient process, improving both speed and accuracy.

Key Components of a One-Step Impregnation Station

A one-step impregnation station consists of several critical components that work together to ensure the precise application of liquids and to control the impregnation process. These components include:

• Impregnation Roller: The roller applies the impregnation liquid to the material's surface, ensuring uniform coating.
• Measuring Roller: Used to control the amount of impregnation liquid being applied, ensuring consistency in the coating.
• Measuring Adjustment Device: This device fine-tunes the quantity of liquid applied, allowing for precise adjustments during operation.
• Glue Groove Lifting System: The lifting system controls the height of the glue or resin, providing accurate coverage as the material passes through the station.
• Gas System: The gas system aids in the proper distribution of air to maintain the correct pressure and speed for the impregnation process.
• Circuit System & Electronic Control: These systems manage the operation of the station, allowing for automatic control of various parameters such as speed, pressure, and liquid application.

Frame Production and Durability

The structure of a one-step impregnation station is built for durability and long-term use. The frame is typically made from high-tension steel plates and welded steel, ensuring robust construction. The areas of the frame that come into contact with glue or other chemicals are often made from SUS304 stainless steel, a material known for its resistance to corrosion and durability in harsh environments. This construction ensures that the machine can withstand the mechanical stresses of continuous operation and exposure to various chemicals.

Dimensions and Space Requirements

The typical one-step impregnation station has specific dimensions that make it suitable for integration into various production lines. The length of the station is around 3.8 meters, while the breathing height, or the height of the space required for airflow and material handling, is approximately 2.5 meters (single breath). These dimensions ensure that the station can handle a wide range of materials and be easily incorporated into most industrial settings without requiring excessive space.

Applications of a One-Step Impregnation Station

One-step impregnation stations are commonly used across various industries where precise coating and impregnation are necessary. Some of the key applications include:

• Automotive Industry: Used to impregnate materials such as filters, seals, and gaskets with resins or oils for improved performance and durability.
• Textile Industry: Employed for applying coatings to fabrics to improve water resistance, fire resistance, or other special properties.
• Electronics Manufacturing: Utilized for coating electronic components like circuit boards or connectors to protect against moisture, corrosion, or other environmental factors.
• Pharmaceutical and Food Industries: Used for coating packaging materials or tablets to ensure proper protection and functionality.

Advantages of a One-Step Impregnation Station

The one-step impregnation station offers several advantages that make it an ideal solution for industrial coating and impregnation needs. These advantages include:

• Efficiency: By integrating multiple steps into one station, it streamlines the impregnation process, reducing time and labor costs.
• Consistency: The automatic systems and adjustable parameters ensure that the amount of liquid applied is uniform across all materials, resulting in consistent quality.
• Precision: The fine-tuning options for liquid application allow for accurate coating, preventing waste and improving the overall quality of the final product.
• Space Saving: The compact design and integrated systems reduce the need for multiple separate machines, saving valuable production floor space.

In conclusion, a one-step impregnation station is an essential piece of equipment for industries requiring precise, efficient, and reliable coating and impregnation of materials. Its combination of features, including adjustable systems, durability, and versatile applications, makes it an invaluable tool in modern production processes. By optimizing the impregnation process, companies can improve the quality and consistency of their products, reduce operational costs, and increase production efficiency.
